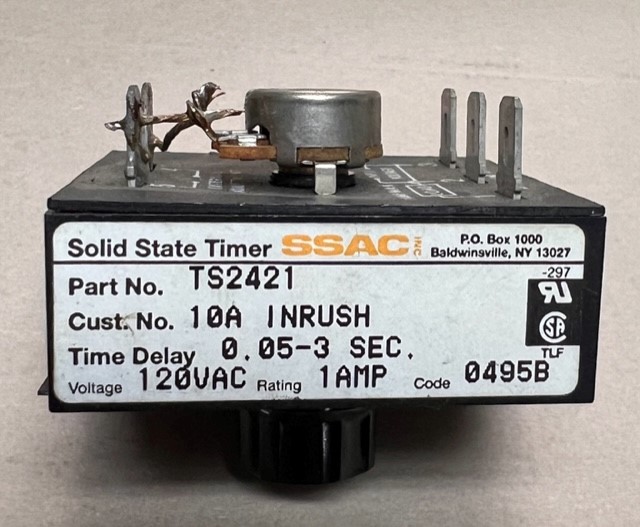

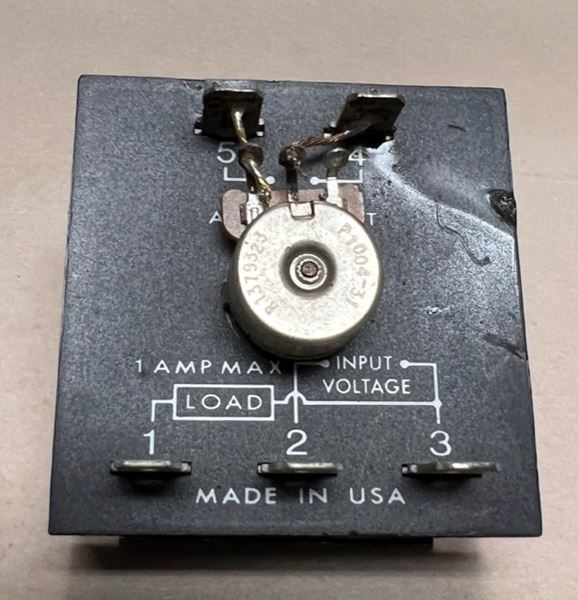

ABB-SSAC Timer Relay Delay on Make, Timer Series
Unit of Measure
Technical Specs
Brands |
N/A ABB-SSAC |
Height (H) |
N/A 2 in50.8 mm |
Width (W) |
N/A 2 in50.8 mm |
Non-Condensing Relative Humidty |
N/A 95 % |
Storage Temperature |
N/A 85 to 40 ºC185 to 40 ºF |
Operating Temperature |
N/A 40 to 75 ºC40 to 167 ºF |
Termination Type |
N/A 0.25 in6.35 mm |
Power Consumption |
N/A ≤2 V·A |
Insulation Resistance |
N/A ≥100 |
Setpoint vs Ambient Temperature and Operating Voltage |
N/A ≤±10 % |
Reset Time |
N/A ≤150 ms |
Time Delay Tolerance |
N/A ≤±10 % |
Time Delay Range |
N/A 0.05 to 3 s |
Output Voltage Drop at 1 Ampere (A) |
N/A ≅2.5 |
Input Tolerance |
N/A 15 % |
Input Alternating Current (AC) Voltage |
N/A 120 |
Mounting Method |
N/A Surface Mount with 1 #10 (M5 x 0.8) Screw |
Time Delay Type |
N/A Analog |
Dielectric Breakdown |
N/A ≥2000 V Terminals To Mounting Surface |
Repeat Accuracy |
N/A ±2% or 20 ms Whichever is Greater |
Output Load Rating (VA) |
N/A 1 A Steady State 10 A inrush at 60°C |
Circuitry |
N/A Encapsulated |
Output Form |
N/A Normally Open (NO) - Closed During Timing |
Output Type |
N/A Solid State |
Weight |
N/A 0.7 lb |
